TropDS

TropDS: Downscaling to Enhance Tropospheric Delay Grid Precision in Space Geodesy

This project implements a deep learning-based grid-wise tropospheric delay data downscaling framework for high-precision space geodetic data processing. The model uses a U-Net architecture with physical constraints to restore blurred (low-resolution) tropospheric delay images to their clear (high-resolution) versions.

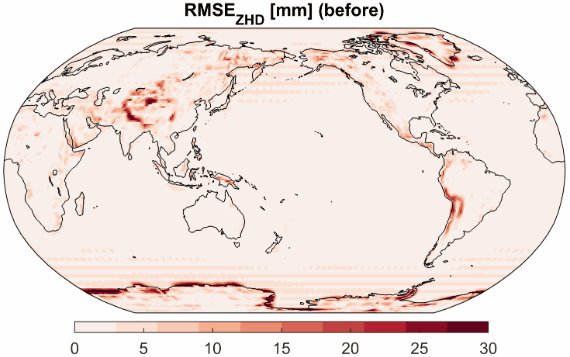

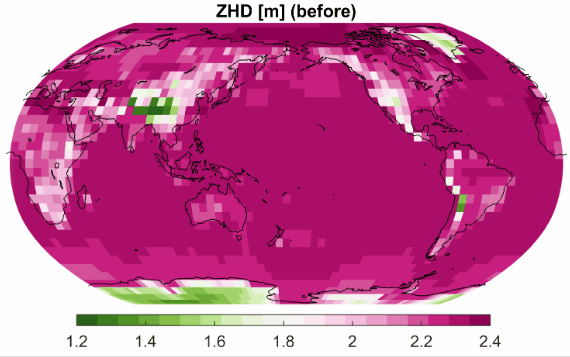

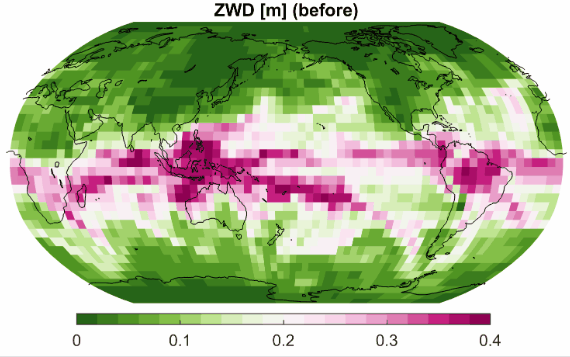

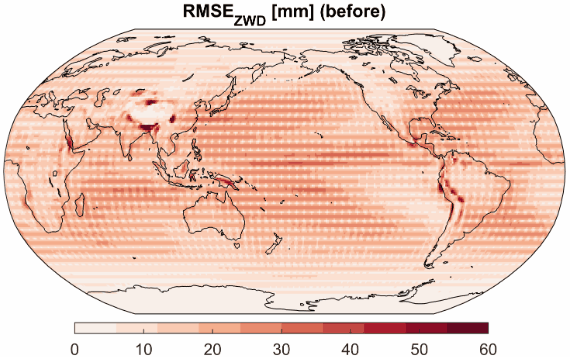

ZHD	ZWD	RMSE ZHD	RMSE ZWD

Key Features

• U-Net Architecture: Encoder-decoder structure with skip connections for accurate image restoration
• Physical Constraints: Softplus activation ensures non-negative output (physically meaningful for tropospheric delay)
• Spatial Weighting: Historical RMSE-based weighting focuses training on high-error regions
• Freeze Mechanism: Low-RMSE regions (e.g., high-latitude/high-altitude) are frozen to prevent over-correction
• Mixed Precision Support: Optimized for efficient GPU utilization

Installation

Prerequisites

• Python 3.8 or higher
• CUDA-capable GPU (recommended for training)
• 8GB+ GPU memory (16GB recommended for optimal performance)

Setup

1. Clone the repository

   git clone https://github.com/Sardingfish/TropDS.git
   cd TropDS


2. Create virtual environment

   python -m venv venv
   source venv/bin/activate  # Linux/Mac
   # or
   venv\Scripts\activate  # Windows


3. Install dependencies

   pip install -r requirements.txt


Verify Installation

python -c "import torch; print(f'PyTorch: {torch.__version__}'); print(f'CUDA: {torch.cuda.is_available()}')"

How to Run

Data Preparation

1. Place your grid-wise tropospheric delay data files in the ./data/ directory
2. Expected file format: NumPy .npy files
3. Expected data shape: (180, 360) for single sample or (N, 180, 360) for batches
4. File naming convention:
   • {year}_blur.npy: Blurred tropospheric delay data
   • {year}_clear.npy: Clear/reference tropospheric delay data

Example data structure:

data/
├── 2020_blur.npy
├── 2020_clear.npy
├── 2021_blur.npy
├── 2021_clear.npy
├── ...
├── 2024_blur.npy
└── weight.npy          # Optional: RMSE weight map (180x360)

Training

1. Configure training parameters in train.py: ```python

   Data configuration

   YEARS_TRAIN = [2020, 2021, 2022, 2023] # Training years YEAR_VAL = 2024 # Validation year

Training configuration

BATCH_SIZE = 32 # Adjust based on GPU memory LEARNING_RATE = 1e-4 EPOCHS = 200 PATIENCE = 20

Freeze configuration

FREEZE_THRESHOLD = 0.01 # Freeze RMSE < 0.01 regions ENABLE_FREEZE = True

2. **Run training**:
```bash
python train.py

1. Outputs are saved to ./output/:
   • best_model.pth: Best model checkpoint
   • final_model.pth: Final model checkpoint
   • training_history.npy: Training metrics history
   • training_report.txt: Training summary report

Inference

1. Configure inference parameters in inference.py:

   MODEL_PATH = './output/best_model.pth'
   YEAR_INFERENCE = 2025


2. Run inference:

   python inference.py


3. Output:
   • ./output/{year}_deblurred.npy: Deblurred tropospheric delay data

File Structure

TropDS/
├── README.md                 # Project documentation
├── requirements.txt          # Python dependencies
├── train.py                  # Training script
├── inference.py              # Inference script
├── models.py                 # U-Net model definition
├── datasets.py               # Data loading and preprocessing
├── losses.py                 # Custom loss functions
├── metrics.py                # Evaluation metrics
├── data/                     # Input data directory
│   ├── {year}_blur.npy
│   ├── {year}_clear.npy
│   └── weight.npy            # Optional RMSE weight map
└── output/                   # Output directory
    ├── best_model.pth
    ├── final_model.pth
    ├── training_history.npy
    ├── training_report.txt
    └── {year}_deblurred.npy

Model Architecture

U-Net with Physical Constraints
==============================
Input:  (B, 1, 180, 360)
Output: (B, 1, 180, 360)

Encoder Path:
  - enc1: ConvBlock(1, 32)
  - enc2: EncoderBlock(32, 64)    - MaxPool
  - enc3: EncoderBlock(64, 128)   - MaxPool
  - enc4: EncoderBlock(128, 256)  - MaxPool
  - enc5: EncoderBlock(256, 512)  - MaxPool
  - bottleneck: ConvBlock(512, 512)

Decoder Path:
  - dec4: DecoderBlock(512, 256, 256)  - UpConv + Skip
  - dec3: DecoderBlock(256, 128, 128)  - UpConv + Skip
  - dec2: DecoderBlock(128, 64, 64)    - UpConv + Skip
  - dec1: DecoderBlock(64, 32, 32)     - UpConv + Skip

Output Layer:
  - Conv2d(32, 1, kernel_size=1)
  - Softplus()  # Physical constraint: output > 0

Total Parameters: ~12.5M

Citation

If you use this code in your research, please cite:

@article{ding2026TropDS,
  title = {TropDS: Downscaling to Enhance Tropospheric Delay Grid Precision in Space Geodesy},
  author = {Ding et al.},
  journal={******},
  year={2026},
}

License

This project is licensed under the BSD 3-Clause License.

Acknowledgments

• U-Net architecture adapted from Ronneberger et al., 2015
• SSIM implementation inspired by pytorch-ssim
